2015-2019 Hyundai Elantra AC Compressor Replacement
Repair Procedures
Note: Precautions for using the plastic pulley
- Take care not to give physical impact to the plastic pulley. If exposed to the impact of dropping or collision, the pulley should not be used although not damaged.
- Be Careful not to place the pulley downwards of the floor or table
- Be Careful not to apply the external force and impact on Pulley while moving or using.
- Be Careful not to apply force to the pulley.
-
If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off.
-
Disconnect the Negative Battery Terminal.
-
Recover the Refrigerant with a recovery/charging station.
-
Remove the Engine room under cover also known as a splash shield.
-
Remove the Front wheel guard.
-
Loosen the Drive Belt

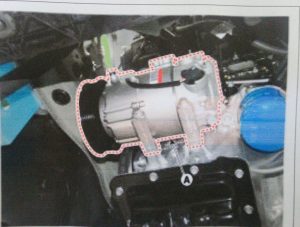

2015-2019 Hyundai Elantra AC Compressor -
Remove the ac line bolts. Disconnect the Ac suction line and discharge line from the ac compressor.
-
Disconnect the AC Compressor switch connector
-

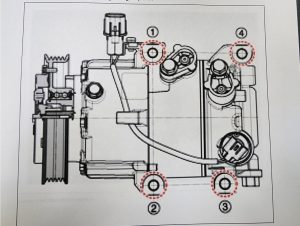

Remove the AC Compressor by loosening the mounting bolts
2015-2019 Hyundai Elantra AC Compressor -
Installation is the inverse of the procedure
