Ford Mustang 5.0L (6tha gen) Brake Pad Repair

Paying attention to the braking system is of utmost importance to ensure a high level of safety when driving, for the Ford Mustang 5.0L 2014-2023 model is no exception. In the following article, we will teach you how to repair and replace the front and rear brake pads of the famous 6th generation Ford Mustang. Additionally, you will find some tips to ensure quality work and get the most out of your vehicle.

Signs and common issues in Ford Mustang 5.0L Brake System

Aunque seguramente ya es evidente el daño que puedan estar presentando las pastillas de freno de tu Mustang, hay algunos síntomas que puedes aprender a detectar con el tiempo y que, de ser atendidos a tiempo, pueden ahorrarte mucho dinero. Uno de los más comunes es el desgaste, el cual provoca que las distancias de frenado sean más grandes y además, influye en la disminución del rendimiento general de tu vehículo.

Another common problem is uneven brake pad wear, which causes the pads to wear faster and more frequently, which in turn results in having to make more frequent replacements and also means that you have to apply more force to the brake pads. pedal when you brake.

Finally, another classic is hearing a kind of grinding noise when applying the brakes, often this sound is caused by the accumulation of dust or dirt on the pads of your Ford Mustang. This is usually not a serious problem, but it should still be addressed to prevent proper functioning of the brake system from lowering its performance.

When do I need to do Maintenance?

Inspection of the brake system is very important and should be done frequently, especially when it is time to change the brake pads. We can say that as a general rule it is recommended to check your car’s brakes every 10,000 kilometers or, failing that, at least once a year. By paying close attention to the signs we mentioned above, you will be able to detect the exact moment when your brake system is ready to be replaced.

If you own a Model in the following list, you’ll be able to perform both removal and installation procedures within this tutorial:

  • Ford Mustang 2014
  • Foord Mustang 2015
  • Ford Mustang 2016
  • Ford Mustang 2017
  • Ford Mustang 2018
  • Ford Mustang 2019
  • Ford Mustang 2020
  • Ford MMustang 2021
  • Ford Mustang 2022
  • Ford Mustang 2023
An expert auto repair
broward county
Call us at (954) 826 5523
AN EXPERT AUTO
REPAIR BROWARD
County
Call us at (954) 826 5523

Ford Mustang 2014-2023 Brake Pad Removal

Next we can begin with the removal of the brake pads of your 6th generation Mustang:

  1. Remove wheel and tire. Refer to: Wheel and Tire

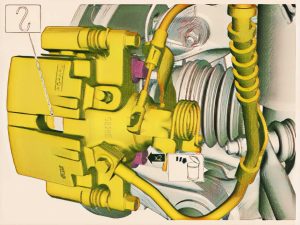

  2. Remove the 2 bolts and position the brake caliper and anchor plate assembly aside. Discard the bolts. Torque: 129 lb.ft (175 Nm)
    Ford-Mustang-2014-2023-Brake-Pad-Removal

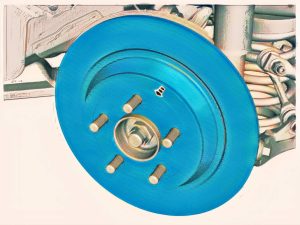

  3. Remove the brake disc
    Remove-the-brake-disc

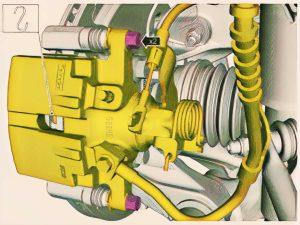

Ford Mustang 5.0L Brake Caliper Piston Retractor

  1. Remove the 2 bolts and position the brake caliper aside. Torque: 24 lb.ft (32 Nm)
    NOTE: Do not allow the brake caliper to hang from the brake hose or damage to the brake hose may occur.

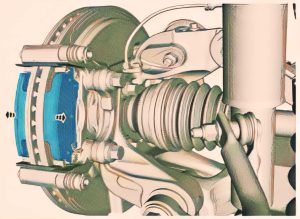

  2. Remove the brake pads
    Remove-the-brake-pads

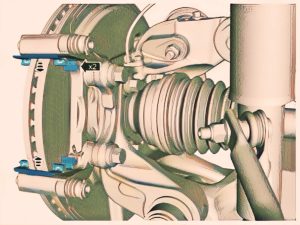

  3. Remove the clips.
    Remove-the-clip

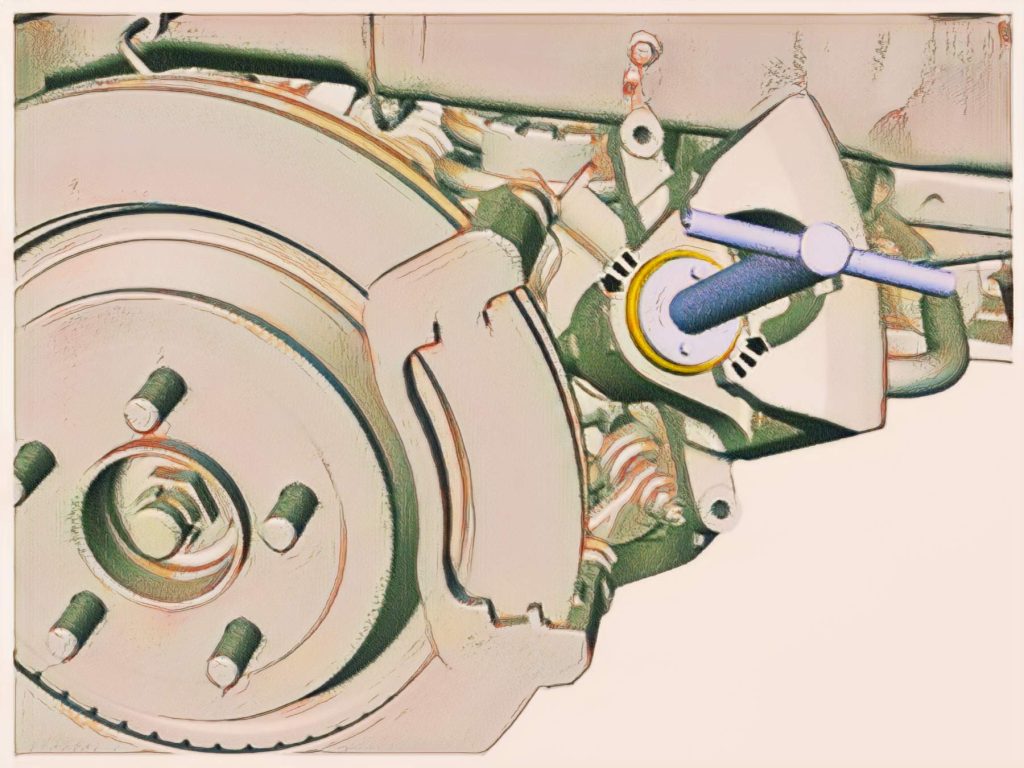

    1. If installing new brake pads. Retract the brake caliper pistons into the brake caliper bore. Use the General Equipment: Brake Caliper Piston Retractor.


    NOTE: Make sure the notch on the piston is aligned with the pin on the inboard brake pad before installing the brake caliper. A moderate to heavy force toward the caliper piston must be applied. If sufficient force is not applied, the internal park brake mechanism clutch cone will not engage and the piston will not compress.

BRAKE-PADS-GT350-Removal
An expert auto repair broward county

Transparency and pofesionalism
are at the forefront of all our
automotive repair services.

Contact us now!
Call us at (954) 826 5523

BRAKE PADS - GT350 Removal

  1. Remove wheel and tire. Refer to: Wheel and Tire .

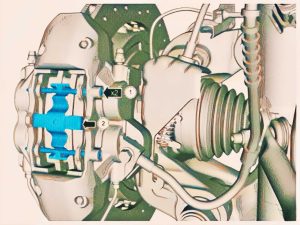

  2.  a.  Remove the brake pad pins
     b. Remove brake pad spring.
    BRAKE-PADS-GT350-Removal-1

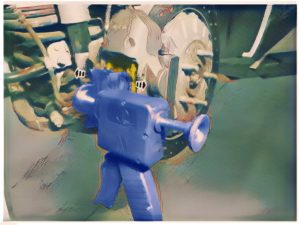

  3. Compress the brake caliper pistons using a brake pad spreader tool and remove the brake pads. Use the General Equipment: Brake Caliper Piston Retractor
    Compress-the-brake-caliper-pistons

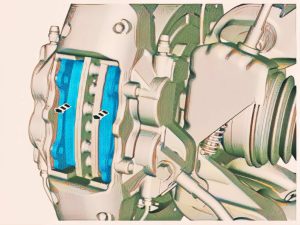

  4. Remove the brake pads.
    Remove-the-brake-pads

Installation

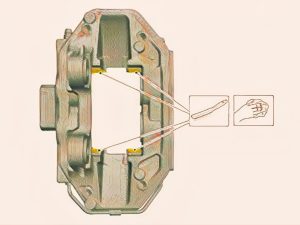

    1. Clean the brake pad-to-caliper contact surfaces.
      Clean-the-brake-pad-to-caliper-contact-surfaces

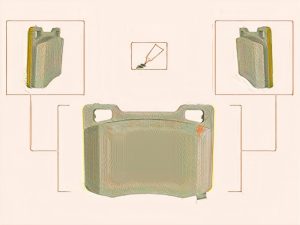

    2. Clean the brake pad-to-caliper contact surfaces and apply the lubricant supplied with the brake pad kit.
      NOTE: If installing new brake pads, make sure to install all new hardware and lubricant supplied with the brake pad kit. Refer to the brake pad instruction sheet when applying lubricant.

      Clean-the-brake-pad-to-caliper

    3. To install, reverse the removal procedure.
    4. Depress the brake pedal, check the brake fluid level in the brake fluid reservoir and top up as necessary with brake fluid.

One of the most important components of the integral operation of a car is the braking system, its maintenance and regular inspection is crucial to maintain the optimal performance of the entire car, in addition to that, the care of this system guarantees the safety and protection of your life and that of the pedestrians and drivers who share the roads with you. If these instructions seem complex or doubtful to execute, we recommend contacting expert brake service mechanics such as AutoTech Mobile, who are not only strategically located, but also provide their expertise directly in the comfort of your garage.
