Precautions you need to take
Warning: Do not remove the cylinder block drain plugs or loosen the radiator draincock with the system hot and under pressure. Serious burns from coolant can occur.
Do not waste reusable coolant. If the solution is clean, drain the coolant into a clean container for reuse.
Warning: Constant tension hose clamps are used on most cooling system hoses. When removing or installing, use only tools designed for servicing this type of clamp. Always wear safety glasses when servicing constant tension clamps.

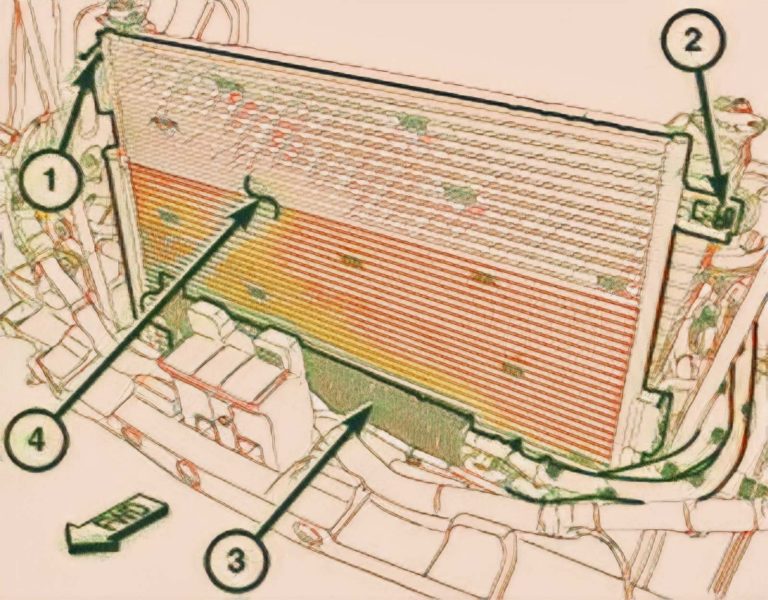

Dodge Durango 3.6L Radiator Replacement
1. Disconnect the negative battery cable at battery. (2013-2020 Dodge Durango Radiator Replacement)
2. Drain coolant from radiator
3. Remove the A/C condensor.
4. Remove the upper radiator crossmember.
5. Disconnect the upper radiator hose.
6. Disconnect the overflow hose from radiator.
7. Remove the cooling fan assembly.
8. Remove the lower radiator hose from the water pump.
9. Lower part of the radiator is equipped with two alignment dowel pins and fit into the rubber grommets. These rubber grommets are pressed onto the radiator.
10. Gently lift up and remove radiator from vehicle. Be careful not to scrape the radiator fins against any other components.
11. Remove the lower radiator hose from the radiator. (2013-2020 Dodge Durango Radiator Replacement)
broward county
HOW TO REPLACE A DODGE DURANGO RADIATOR
1. SAFETY FIRST
Your radiator has electrical connections. Disconnect the battery before proceeding. You’ll need to raise the vehicle so you can access your radiator. You can use a car jack and stands to keep the vehicle up, but remember to put a chock behind the wheels and engage the parking brake. Wait until the engine is cold before proceeding.
This job can be dangerous, so be extra careful. You will encounter sharp edges and other circumstances that could cause injury. Protect yourself by wearing quality safety gloves and goggles. Be watchful of any moving items while working.
And, to repeat, make sure the car, engine, and coolant are NOT hot!
2. INSPECT OR REPLACE
Before jumping in and replacing a whole radiator, take a minute to inspect your entire coolant system. Examine the radiator (or overflow) cap. Check the belts and hoses for damaged, cracked rubber or any leaks. Find the fan clutch between the radiator and the water pump motor (on some vehicles) and make sure there is no play in the bearings.
Don’t forget about your engine thermostat. If your cooling problem has caused the engine to overheat, your thermostat may have been damaged. You may want to replace this small part when replacing the radiator.
3. DRAIN THE RADIATOR
There are two ways to drain radiators. Remove the radiator cap either way. Once the cap is removed, you can either open the petcock valve or remove the bottom radiator hose to drain the coolant. Drain the coolant into a plastic reservoir.
4. DISCONNECT THE RADIATOR
With the coolant drained, you can start removing hoses, clamps and the radiator bolts keeping the radiator in place. You’ll have to disconnect the following parts on most vehicles:
- Radiator reservoir hose
- Upper radiator hose
- Lower radiator hose
- Cooling fan connector
- Cooling fan mounting boltsCooling fan
- Cooling fan shroud
- Transmission cooler lines (many vehicles require special tools to disconnect)
- Engine oil cooler lines (these appear in many high-heat vehicles like 4×4 and Deisel trucks)
- A/C Condenser mounting bolts
- Radiator mounting bolts
Remember to keep all the hoses, connectors, bolts, and components organized. You’ll have to reinstall the parts in reverse order.
Transparency and professionalism
are at the forefront of all our
Auto repair services
5. REMOVE THE OLD RADIATOR
With all the hoses, bolts, and lines removed, you should be able to remove the radiator from the vehicle. Many radiators can be removed by lifting up and out of the vehicle, but some need to be removed from underneath the vehicle.
6. MOUNT THE NEW RADIATOR
Set the new radiator in place, and then reattach all the previously removed parts. Start with the radiator mounting bolts and finish with the radiator reservoir hose.
7. ADD COOLANT
Check that the petcock is closed and that all other valves and caps on the new radiator are shut. With all the hoses and bolts attached, fill the new radiator with coolant. Check oil and transmission fluid levels in case any was lost during the installation.
This is an excellent time to flush your coolant system and replace the old coolant with new coolant. Unless the coolant was recently replaced, we highly recommend performing a flush and fill. The old, drained coolant can become contaminated with debris or transmission fluid during the process of replacing the radiator, and its a safe bet to just flush and install new coolant.
Use distilled water for mixing and adding to the cooling system. The water to coolant ratio must be correct. Most applications use a 50/50 mixture although some may require a stronger coolant ratio. Refer to a Repair Manual for specific applications for your vehicle and typical annual weather.
8. BLEED THE AIR FROM THE COOLING SYSTEM
